Working Principle

The raw material enters the crushing chamber from the star valve through the inclined tube through the grading chamber, and is severely impacted by the impact hammer. The pulverized material rises to the classification wheel with the airflow for classification, and the fine powder that meets the fineness requirements is discharged.

Features

This machine integrates mechanical crushing and air classification, and is a new type of combined equipment with compact structure.

This machine has a split mechanism, which divides the grading and crushing parts into two parts, which is convenient for inspection, cleaning and maintenance.

The production capacity is large, the maximum raw material particles can reach about 15mm, and the product particle size can be adjusted arbitrarily within the range of d97=6-150um.

Generally suitable for materials with a Mohs hardness of 3.5. Using special wear-resistant materials, it can be applied to material hardness Mohs 7.

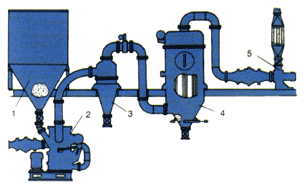

Schematic Diagram of The Mechanical Pulverizer of The JCF System

1. Silo

2. Host

3. Cyclone Separator

4. Bag Catcher

5. High Pressure Fan

Scope of Application

Pesticides, limestone, talc, kaolin, silica, corundum, paraffin, aluminum hydroxide, lactose, cocoa mixture, etc.

The Main Technical Parameters

	JCF300		JCF400		JCF630		JCF1000		JCF1250
	Grading	Smash	Grading	Smash	Grading	Smash	Grading	Smash	Grading	Smash
Motor Power(mm)	3	7.5	7.5	18.5	11	379（45）	15	75（90）	30	160
Rotating Speed(max r/min)	8000	7000	6000	5600	4000	3550	2400	2250	2000	1800
feeding Amount(Kg/h)	20~150		40-400		50-1000		400-3000		3000-4500
Weight(Kg)	700		807		2450		5330		7000
Dimensions(mm)	1190*790*1180		1460×780×1707		2145×1330×1710		3460×1866×2350		3700*2300*2630
Raw Material Particle Size(max mm)	3		5		5mm		15		15
Product Particle Size(d97 um)	5-120		6-120		10-120		8-150		9-200
